netbook case tutorial

the husband and i recently bought a new acer netbook, with the intention of using it mainly for travel and other occasions where bringing our much bulkier laptops would be cumbersome. naturally, it needed a case, so i made one. it didn't come out exactly perfect (i'll address the errors later), but i am overall happy with the concept.

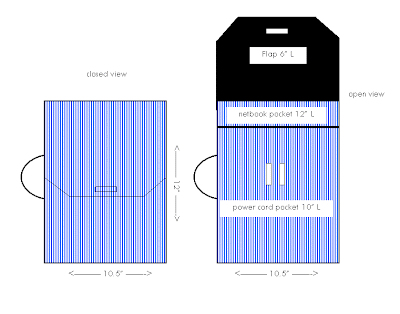

as usual, i started with a few quick graphic sketches and this is the final model i decided to go with:


the bag is padded, and has two pockets. the main pocket is for the netbook and the front smaller (and unpadded) pocket is for the adapter/plug. it opens and shuts with a velcro flap, and also has a handle on the side. keeping the users in mind (we're sharing) i chose a blue and white striped heavy cotton fabric. the nice thing about this project is i already had all the materials in my craft stash.

the materials (don't forget to measure you own netbook/laptop and adjust the sizes accordingly)


outer fabric:
main compartment piece-30" X 10.5" + extra for seam allowance (this will make both the body and the closing flap)
adapter pocket piece- 10" X 10.5" + extra for seam allowance

lining fabric:
main compartment piece- 30"X 10.5" + extra for seam allowance
adapter pocket piece -10" X 10.5" + extra for seam allowance

cotton batting: 1 piece for the main compartment-30"X 10.5" + extra for seam allowance
velcro - 2 corresponding halves about 1.5 inches (or more) each
cotton or nylon webbing: - about 7 inches plus extra for seam allowance

a clearer picture of all the pieces. i cut right triangles off both ends of the flap (2.5") to add some visual appeal.


once you have all your pieces, pin your three main compartment pieces and handle together, with the cotton batting on the bottom, lining in the middle (if yours is patterned or one sided, make sure the side you want is facing up), the strap where you want it (the ends facing out over the seam, and the U part inward), and then the outer layer facing DOWN on the lining fabric. pin around the sides except for the bottom.



here's a graphic image to illustrate the step clearer.  notice the top layer is a lighter blue to indicate that the patterned side is facing down.


another look showing how the strap should be placed in the three layers:

  sew around the pinned sides.


turn it inside out...


finger press or iron.


repeat with the adapter pocket pieces by pinning the front and back pieces together, with the pattern side facing each other.  sew around the 3 edges, leaving the top part of the pocket open.  flip inside out and finger press or iron.


tuck the seams of the opened ends inward with your remaining seam allowance. press, pin, and sew (i know it looks like the pocket piece is already attached to the main part, but i only placed it there to give an idea where this is going).



decide where you want the velcro pieces to go. pin + sew.


mark the place (i use a fabric pen) where the main compartment will be folded (so in my case, 12" from the flat side- if measuring from the flap side, it would be 18" - remember the whole piece when sewn together should be 30" long). pin the bottom part of the adapter pocket along this line, and sew the 2 pieces together. try to sew close to the edge.


fold the main compartment over. line up the unattached sides of the adapter pocket with the front and back sides of the main compartment.  pin carefully- it's pretty thick at this point. sew down the right and left edges... and you are finished! tuck your netbook and accessories in, and you're ready to traipse around the world.


a few notes: 1. make sure you measure your netbook/laptop carefully. for some reason, my case ended up too big. i must have been tired when i was working on the measurements (and maybe paranoid it'd end up too small).  2.  you might have noticed that my handle ended up on the wrong side.  i'm not really sure how that happened either- i'll blame it on sleepiness, since i was working on this late in the evening after work.  oops!
